cMT2158X

Call for Price

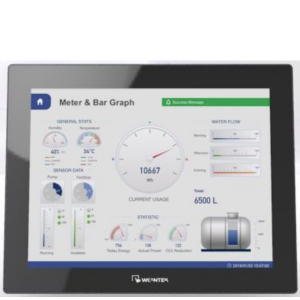

HMI with 15″ TFT Display

Category: Tags: ,

cMT2158X 15″ 1024 x 768 TFT LCD, Quad-core 64bit 1.5GHz with Fan-less Cooling System, Built- in 4GB Flash Memory and RTC, NEMA4/IP65 Compliant Front Panel, Optional EasyAccess 2.0 and CODESYS.

Utilizing the quad-core high performance CPU, the cMT X Series HMIs can overcome the most difficult computational challenges and meet customer expectation for speedy and smooth operation experience. With the three standard models now available in the most popular sizes: 7”, 10”, and 15”, the cMT X Series is definitely the best choice for your new and upgrade projects alike.

Painless Transition
Those upgrading to the cMT X Series should find that transition is quick and easy. From the outside, cMT2078X, cMT2108X, and cMT2158X use the same cutout dimensions as those of the corresponding former models, meaning that hardware modification will not be needed. In terms of software, converting an existing project is as simple as opening it, so there is no need for project redesign, which saves plenty of time and manpower. For selected few features that cannot be directly converted, update reports and modification guidelines are provided to ensure that nothing is missed.

NOTE: The cMT X Models cMT2078X, cMT2108X and cMT2158X do not support certain features such as CAN Bus, MPI, OPC UA Server, Database Server, etc. These features are only supported on the advanced models.

Weight 5 lbs
Dimensions 12 × 10 × 6 in

Features

  • 15″ 1024 x 768 IPS LCD

  • Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor

  • Fan-less Cooling System

  • Built- in 4GB Flash Memory and RTC

  • SD Card Slot Supports SD/SDHC Cards

  • COM1 / COM3 RS-485 Built-in Isolation

  • Built-in Power Isolator

  • NEMA4/IP66 Compliant Front Panel
