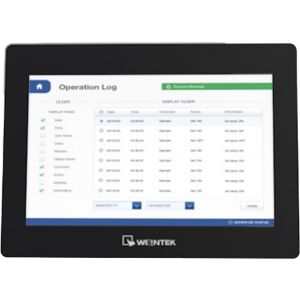

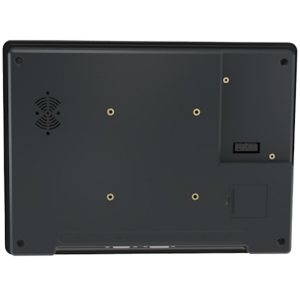

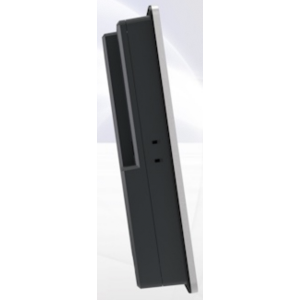

HMI with 10.1″ 1280×800 WVA LCD Display, LED Backlight


The cMT3108XH offers a bright 1280×800 pixel 10.1″ touchscreen WVA display, fast Quad-core 64-bit RISC processor, and 1 GB of RAM for graphics-intensive projects. The cMT3108XH has optional EasyAccess 2.0 for remote monitoring and access to HMIs via an Apple or Android tablet or smart phone.

Weight 5 lbs
Dimensions 12 × 10 × 6 in


  • 10.1″ 1280 x 800 Wide Viewing Angle LCD, LED Backlight

  •  Built- in 4GB Flash Memory and RTC

  • COM2 and COM3 RS-485 2W support MPI 187.5K, please use one at a time.

  • CAN Bus Supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939

  • Fan-less Cooling System

  • PCB coating process ensures high reliability to resist from corrosion in harsh environment.

  • Built-in Power Isolation

  • NEMA4 / IP66 Compliant Front Panel

  • Compatible with M02 WiFi Expansion Module that supports wireless communication.
