cMT3072XH

Call for Price

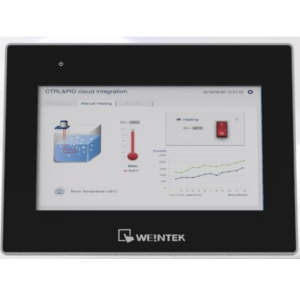

Replaced by cMT3072XH2; HMI with 7″ 1024×600 IPS LCD Display, LED Backlight

Replaced by cMT3072XH2; The cMT3072XH offers a bright 11024×600 pixel 7.0″ touchscreen IPS display, fast Quad-core 64-bit RISC 1.5 GHz processor, and 1 GB of RAM for graphics-intensive projects. The cMT3072XH has optional EasyAccess 2.0 for remote monitoring and access to HMIs via an Apple or Android tablet or smart phone.

Weight 5 lbs
Dimensions 12 × 10 × 6 in

Features

  • 7″ 1024 x 600 IPS LCD, LED Backlight

  • Quad-core Cortex-A35 CPU with High Performance dedicated 3D Processor

  • Fan-less Cooling System

  • Built- in 4GB Flash Memory and RTC

  • COM2 and COM3 RS-485 2W supports MPI 187.5K, please use one at a time

  • CAN Bus Supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939

  • Built-in Power Isolator

  • NEMA4 / IP66 Compliant Front Panel

Literature



















Software
