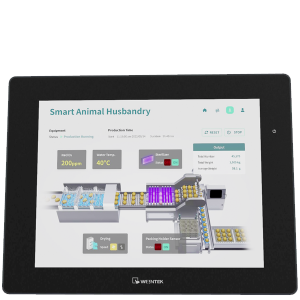

cMT2128X

$1,399.00

HMI with 12.1″ Wide Viewing Angle Display

with CODESYS

We are pleased to announce the release of the first 12″ cMT X Standard HMI: cMT2128X. This new model incorporates new hardware and software designs that are needed to satisfy todayโ€™s requirements.

The cMT2128X is equipped with powerful hardware, including a quad-core CPU, 4GB of Flash memory, 1GB of RAM, an 89ยฐ all-around wide viewing angle display, dual-Ethernet ports, and complete serial port options (RS232 2W/4W, RS485 2W/4W, SIEMENS MPI), all of which contribute to an exceptional operating experience. In terms of software, it offers many cMT X exclusive features, particularly in secure file transfer, multimedia support, and mobile/remote monitoring, all designed to improve work efficiency and HMI applicability.

Weight 5 lbs
Dimensions 12 × 10 × 6 in

Features

  • 12.1″ 1024 x 768 Wide Viewing Angle LCD, LED Backlight

  • Fan-less Cooling System

  • Built- in 4GB Flash Memory and RTC

  • Micro SD Card Slot for Extension of Storage

  • PCB coating process ensures high reliability to resist from corrosion in harsh environment.

  • COM2 / COM3 RS-485 2W support MPI 187.5K, please use one at a time.

  • Built-in Power Isolation

  • NEMA4 / IP66 Compliant Front Panel
