cMT3152X

Call for Price

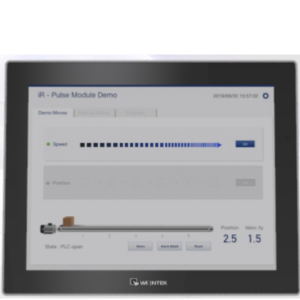

HMI with 15″ XGA IPS Display

The cMT3152X and cMT3162X feature capacitive touch screens with multi-touch drivers allowing SWIPE, 2 and 3 finger gestures, and PINCH to ZOOM.

cMT X Series HMI: cMT3092X / cMT3152X / cMT3162X. cMT X Series, boasting the most powerful processor compared to those adopted by similar products, can overcome the most difficult computational challenges to meet all the expectations for a high-speed HMI.

The brand new cMT X Series is upgraded in every aspect compared to its predecessors, cMT3090 and cMT3151. Equipped with A17 quad-core CPU, the cMT X Series has 4 times more computing power*, and even 12 times* more graphics processing power thanks to its high performance dedicated 3D processor. For users who adopt “cMT HMI + CODESYS controller” solution, the powerful processor ensures that cMT X Series delivers swift and smooth operating experience even with CODESYS running.

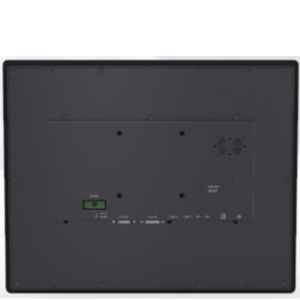

cMT X Series models feature comprehensive peripheral connectivity, including dual Ethernet ports, RS232, RS485 2W/4W, and CAN Bus communication ports, USB Host port, and built-in mono speaker. It also provides what cMT Series already offers, such as the innovative cMT software architecture, powerful and extensive PLC connectivity, IIoT integrability, EasyAccess 2.0 remote service, and pass-through support. Apart from rich functionalities, the appearance of cMT X Series is characterized by distinctive minimalist black design and silver frame that accentuate its well-polished look and superior quality. In addition, cMT3162X adopts the oTP integrated touch solution which helps to realize a lighter and slimmer design while offering unprecedented high-resolution, high-transmittance visual experience.

*CPU performance data based on DMIPS; graphical performance data based on GFLOPS

Weight 5 lbs
Dimensions 12 × 10 × 6 in

Features

  • 15″ 1024 x 768 IPS LCD
  • Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor
  • Tempered Glass, Capacitive Type Touchscreen
  • Fan-less Cooling System
  • Built- in 4GB Flash Memory and RTC
  • SD Card Slot Supports SD/SDHC Cards
  • CAN Bus Supports CANopen Protocol
  • COM1 / COM3 RS-485 2W Supports MPI 187.5K, please use one at a time.
  • COM1 / COM3 RS-485 & CAN Bus Built-in Isolation
  • Built-in Power Isolator
  • NEMA4/IP65 Compliant Front Panel
  • Built-in EasyAccess 2.0 License
