MT8092XE

$728.00

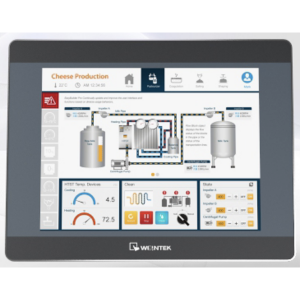

HMI with 9.7″ TFT Display, CAN Bus and 2 Ethernet Ports

The MT8092XE touchscreen o/i panels offer crisp graphics from a powerful Cortex A8 1GHz RISC CPU. Supporting a network of up to 64 devices by COM, USB, 2 Ethernet Ports, Internet, They are manufactured by Weintek. Weintek units can exchange & save data and operate each other over the Internet. The MT8092XE offers CAN BUS connectivity. With over a 150 communication drivers including Allen Bradley, Mitsubishi, Siemens MPI/PPI, Modbus, CANopen the unit can interface to most popular PLCs.

Weight 10 lbs
Dimensions 16 × 12 × 8 in

Features

  • 9.7″ 1024 x 768 TFT LCD, LED Backlight
  • Fan-less Cooling System
  • Built-in 512 MB Flash Memory

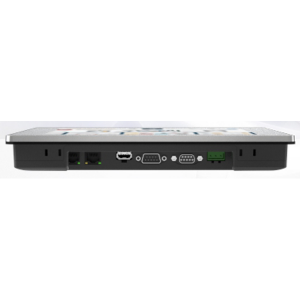

  • Two Ethernet Ports
  • One USB Host Port
  • COM2 and COM3 RS-485 2W support MPI 187.5K, please use one at one time
  • CAN Bus port supports CANopen Protocol
  • Built-in Power Isolator
  • NEMA4 / IP65 Compliant Front Panel
  • Built-in EasyAccess 2.0 License
