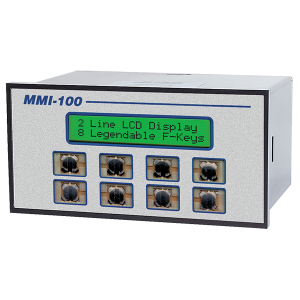

MMI-100

$444.00

Message Center with 2 Line x 20 Character Display and Function Keys

Display Type *

PLC COMMUNICATION

MMI Message Centers require a SMIC cable to communicate with PLCs. See SMIC Cables to choose PLC type.

Category: Tag:

The MMI-100 provides a powerful yet cost effective Programmable Logic Controller (PLC) interface where space requirements are critical and cost is important. It communicates directly with the PLC through the programming port so that I/O can be used for what it is intended. In addition, the MMI-100 provides a serial output port to support a printer or additional slave device.

Weight 4 lbs
Dimensions 10 × 9 × 7 in

Features

  • Windowsâ„¢ based setup software
  • Setup software can convert projects from one PLC brand to another
  • 2 x 20 character, LCD or VFD display
  • 8-30 VDC power
  • Small DIN size
  • 8 Programmable function keys
  • Multiple embedded variables per screen
  • Smart cable hookup to PLC’s
  • Serial interface for PLC connection and programming setup.
  • RS-232 printer port
  • Message capacity is 256 max.
