cMT3218XP

$2,439.00

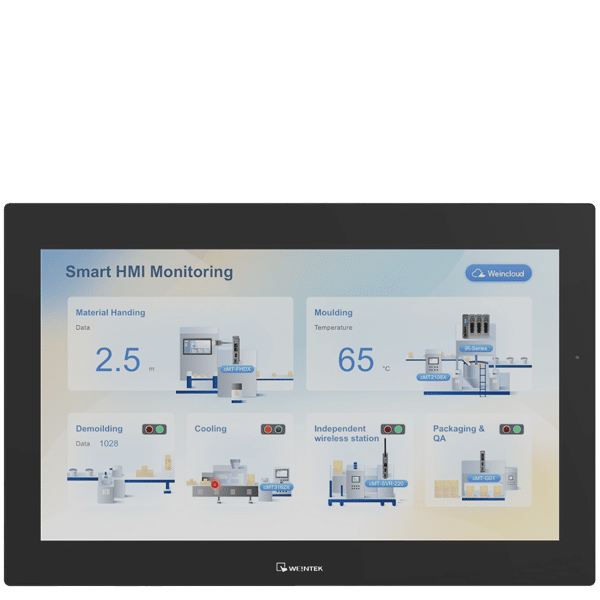

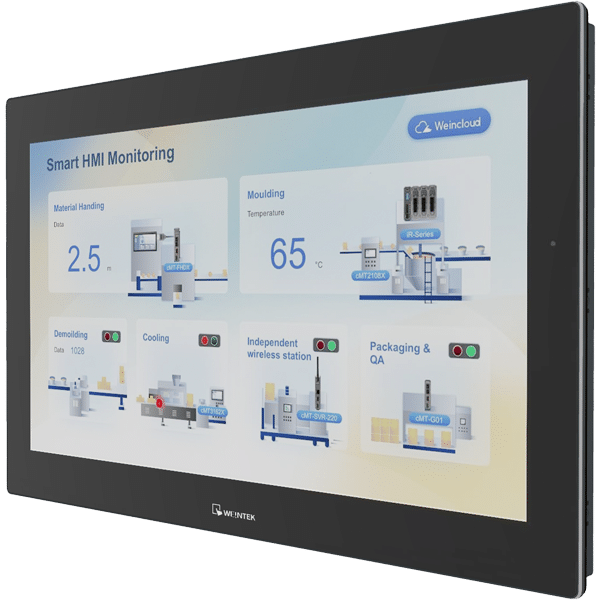

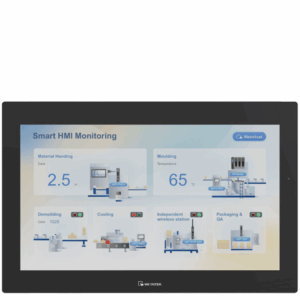

HMI with 21.5″ (1920 x 1080) Full HD LCD Display

with CODESYS

The cMT3218XP is a powerful 21.5″ HMI from the cMT X Advanced Series, designed for demanding industrial applications and modern user experiences. Featuring a Full HD capacitive touchscreen, quad-core processor, and durable aluminum housing, it combines sleek design with rugged performance. With wide protocol support, dual Ethernet, and versatile mounting options, the cMT3218XP excels in automation, machine control, kiosks, and digital signage, enabling seamless integration and efficient, data-driven operations.

Weight 10 lbs
Dimensions 12 × 10 × 6 in

Features

  • 21.5″ 1920 ร— 1080 Full HD LCD with wide viewing angle (89ยฐ in all directions).
  • Quad-core RISC processor with 2 GB RAM and 4 GB Flash memory.
  • IP66 and NEMA 4-rated aluminum enclosure with capacitive multi-touch glass.
  • Built-in dual Ethernet, USB, RS-232, RS-485, CANopen, and MPI 187.5K support.
  • Fanless cooling and PCB coating for harsh industrial environments.
  • Supports panel-mount or VESA arm installation for flexible setup.
