MT8121XE3

Call for Price

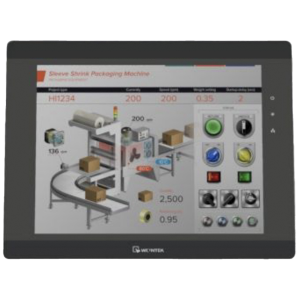

HMI with 12.1″ TFT Display

Category: Tags: , , ,

The MT8000XE Series HMIs are equipped with a high speed A8 CPU. It has set a benchmark record for tasks such as booting speed, JPEG load speed, and PLC data read/write speed. The higher speed of communication improves the efficiency of database operations. It also allows quick screen refreshes of windows that contain many complex objects. With 16.2M colors display, the HMIs show realistic graphics and information that enables plant personnel to quickly assess and control on-site status.

Weight 12 lbs
Dimensions 16 × 12 × 10 in

Features

  • 12.1″ 1024 x 768 TFT LCD, LED Backlight
  • Slim Design
  • Fan-less Cooling System
  • Built-in 256 MB Flash Memory
  • SD Card Slot for Extension of Storage
  • One USB Host Port and one USB Client Port
  • COM1 and COM3 RS-485 Built-in Isolation
  • COM1 and COM3 RS-485 2W support MPI 187.5K, please use one at one time
  • Built-in Power Isolator
  • NEMA4 / IP66 Compliant Front Panel
