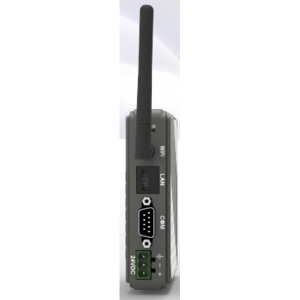

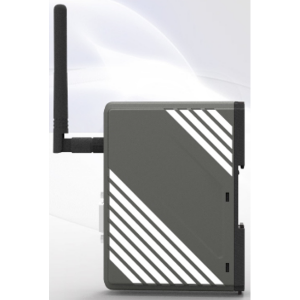

Smart Communication IIoT Gateway with WiFi

In an lloT application, data integration plays a very important role. To achieve data integration, it is essential that the communication between onsite machines and upper layer data management systems (SCADA ERP … etc.) be seamless. However, in a factory where each controller uses a unique driver for communication, data integration is extremely difficult.

We are pleased to introduce the lloT smart communication gateway model: cMT-G02 (with WiFi), as the best solution for data transfer and integration in lloT. Built in with the de-facto standard lloT protocols: MQTT and OPC UA while having the ability to process data as conventional HMI, the cMT-G02 fulfills the demand for Protocol Integration of different controllers, Data Acquisition and Analysis from onsite machines, Secure Data Transmission to the upper layer data management systems, and Real-time Event/Alarm Notification to the operator. The cMT-G0l can perfectly upgrade any factory to a smart factory.

Weight 2 lbs
Dimensions 8 × 7 × 5 in


  • Supports OPC UA
  • Supports MQTT
  • Supports MODBUS TCP/IP Gateway
  • Compact Design and DIN-rail Mountable
  • Fan-less Cooling System
  • Built-in 256 MB Flash Memory
  • Supports MPI 187.5K
  • WiFi compatible with 802.11 b/g/n
  • Built-in Power Isolator
  • Wide input voltage range: 10.5~28VDC
